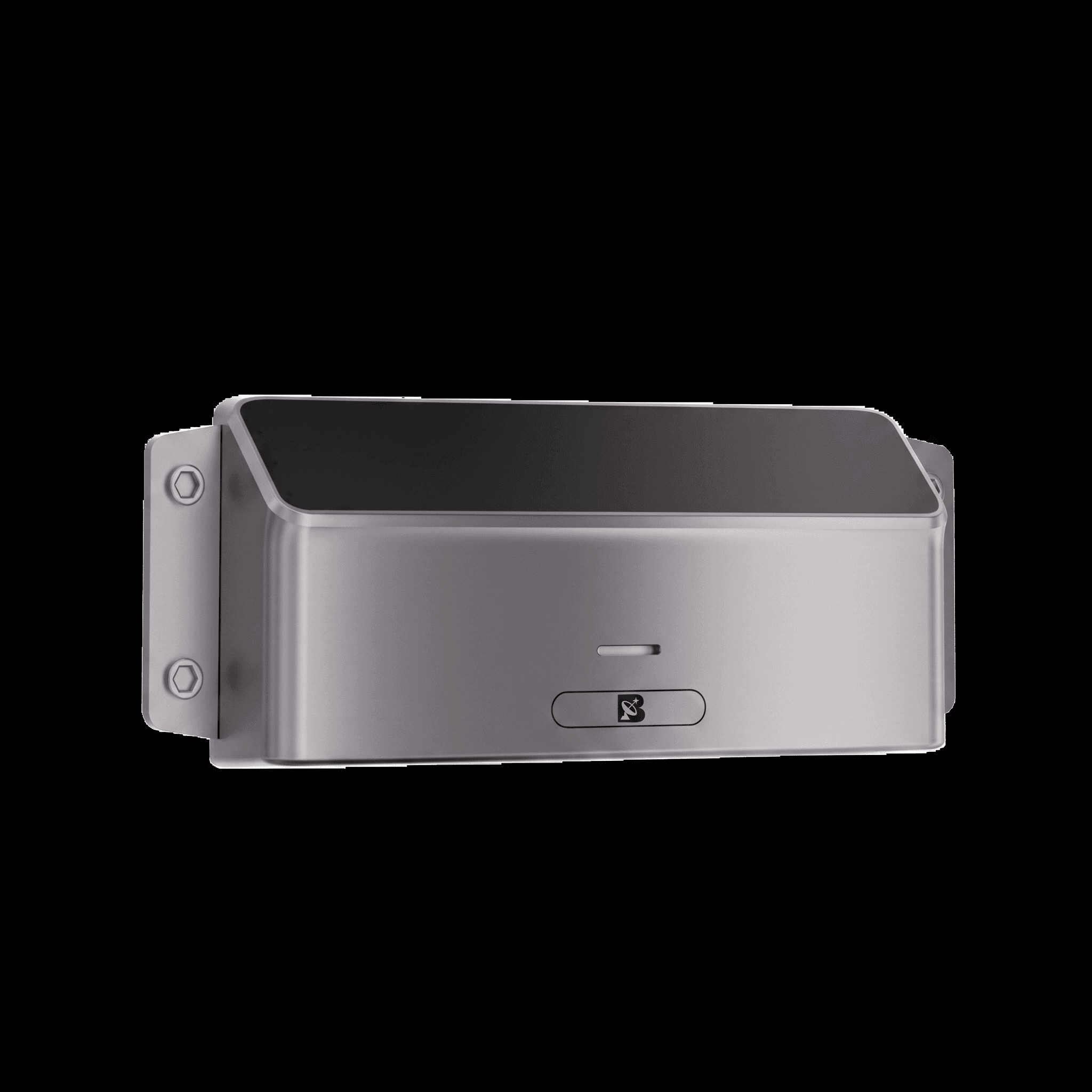

GEESATCOM Container Tracker
This terminal is a container tracking and asset management device equipped with GEESATCOM satellite communication capabilities. It adopts a highly integrated design, incorporating a GEESATCOM satellite communication module, GNSS positioning module, main control unit, antenna unit, power management unit, user interface display, and battery into a single compact unit.
The device is also compatible with LoRa communication and LTE Cat.1 design, ensuring multi-network interoperability and reliable data transmission in complex environments.
It is designed for easy installation, maintenance-free operation, and strong environmental adaptability, featuring waterproof, dustproof, salt-spray resistant, and corrosion-resistant performance. The terminal supports up to 5 years of standby operation, making it ideal for long-term container asset tracking.
Key functions include location reporting, abnormal event alerts, anti-tamper alarms, and low-battery notifications. It is widely applicable to dry containers and reefer containers, across maritime, rail, and road transportation scenarios, enabling comprehensive monitoring of location, movement status, and door opening/closing events.
When integrated with external sensors, the device can also support real-time transmission of environmental data such as temperature, humidity, and pressure, enabling global online monitoring and management of containers and cargo.
Features
- Modular combination of multiple wireless communication technologies: supports GEESATCOM LEO satellite constellation communication
- Supports Bluetooth Low Energy (BLE) communication
- Supports dual-frequency GNSS positioning with an accuracy of 2m CEP
- Supports LoRa low-power wireless communication (optional)
- Supports LTE Cat.1 cellular communication (optional)
- Supports kilometer-level short-range wireless ad-hoc networking (optional)
- Supports location reporting, abnormal event alerts, and low-battery warnings
- Supports container motion and stationary status monitoring
- Supports container door open/close monitoring
- Built-in data storage with reporting and failure retransmission capabilities
- Modular high-capacity low-power battery design, providing up to 5 years of service life
- Rated IP67 for water and dust resistance
- Operates in a wide temperature range of −25°C to +60°C, suitable for diverse transportation environments
- Integrated all-in-one design for simplicity, easy installation, and maintenance-free operation
- Compatible with containers of multiple sizes
- Supports over-the-air updates via 4G or Bluetooth
- Equipped with anti-tamper alarm; automatically reports alerts upon unauthorized removal or disassembly
Applications
Maritime Transportation, Offshore Fisheries, Cross-border railway transportation, Long-distance road transportation
